Frozen Coil Repair in Royal Oaks, Encino
Direct take: Frozen evaporator coils are common in Royal Oaks, Encino, CA (91436), the estate neighborhood where wide duct systems and aging Trane Spine Fin coils ice over in summer heat. Call Encino Trane HVAC at (213) 277-7557 or book online; we thaw the coil, fix the airflow or low-charge cause, and clear the condensate drain.
Worth knowing
- Royal Oaks sits in ZIP 91436, an estate area of larger Encino homes.
- Frozen coils here trace to restricted airflow or a low refrigerant charge.
- Melting ice can overflow the condensate drain and trip the float switch.
- Airflow fix $95-$350; leak repair + recharge $225-$1,500; drain clearing $120-$450.
- Running an iced coil risks liquid refrigerant damaging the Climatuff compressor.
- Same-week service across 91316 and 91436.
Why do Royal Oaks estates ice up their coils?
Royal Oaks is one of Encino's estate pockets, in ZIP 91436, with larger homes, bigger duct systems, and frequently more than one central system per house. That scale is exactly what makes a frozen evaporator coil common here. A wide home with long duct runs is prone to airflow restriction, and a busy household easily lets a filter go three months past due. Starve the coil of warm air and it drops below freezing, frost builds to ice, and the cold air stops.
The second driver is age. Many Royal Oaks systems have been cooling these big footprints for years, and an all-aluminum Spine Fin coil that develops a slow leak loses just enough charge to push the coil temperature below freezing under heavy August load. Either way, the homeowner sees a system running hard with warm vents and, often, water pooling at the air handler.
What do you do when you arrive?

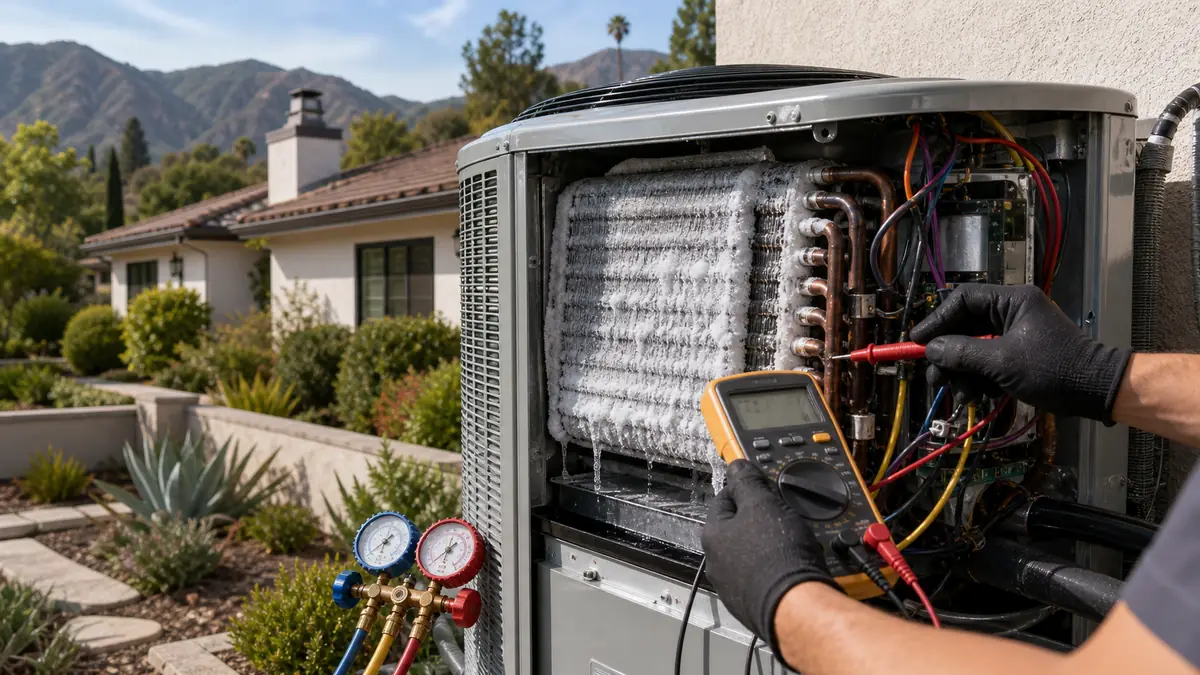

If you call while the coil is still iced, we will coach you to switch cooling off and set the fan to ON so the blower thaws the coil while we are on the way. A coil cannot be fully diagnosed frozen, so the thaw is step one. Once it clears, we run the real diagnosis: measure airflow and static pressure to catch a restriction, and put gauges on the system to check the charge through superheat and subcooling.
| Finding | Cause | Cost lane |
|---|---|---|
| Clogged filter, dirty blower | Airflow restriction freezing the coil | $95-$350 |
| Low charge, oily smudge at a joint | Spine Fin coil or line-set leak | $225-$1,500 |
| Water at the air handler | Overflowed condensate drain or pump | $120-$450 |
| Weak blower even with clean filter | Failing ECM blower motor | $450-$2,300 |
How do you keep it from freezing again?
A thaw is temporary; the fix is the underlying cause. If it was airflow, we restore it with a fresh filter, a cleaned blower wheel, and if the ducts are the bottleneck, duct sealing and resizing. If it was a leak, we find and seal it and recharge to the manufacturer target rather than just topping off, which only delays the next freeze. On a multi-system Royal Oaks estate, a pre-summer check on each unit is the cheapest way to avoid an August breakdown. The full mechanism is on our frozen evaporator coil page.
Common questions about frozen coils in Royal Oaks
Why do Royal Oaks homes get frozen coils so often?
Royal Oaks has large estate homes with big duct systems and often a system or two that have been in place for years. The combination of summer filter neglect on a wide footprint, long duct runs that restrict airflow, and aging Spine Fin coils that develop slow leaks is exactly the recipe for an iced evaporator coil during a Climate Zone 9 heat wave.
My Royal Oaks AC froze and now leaks water. What happened?
The ice on the coil melted faster than the condensate drain could carry it away, so the pan overflowed. The freeze itself came from restricted airflow or a low charge. We thaw the coil, find and fix the airflow or refrigerant cause, and clear or repair the condensate drain and float switch so it does not overflow again.
Can I prevent a frozen coil in my Royal Oaks home?
Largely, yes. Change the filter on schedule, keep return grilles clear, and have the system checked before summer so a slow Spine Fin coil leak is caught before it freezes you out in August. On a large Royal Oaks estate with multiple systems, a pre-season check on each one is cheap insurance against a heat-wave breakdown.
How quickly can you reach Royal Oaks for a frozen coil?
We cover Royal Oaks and the surrounding Encino ZIPs, 91316 and 91436, with same-week service outside peak heat. A frozen coil needs to thaw before we can fully diagnose, so we often coach you to shut cooling and run the fan while we are en route, which saves time once we arrive.
